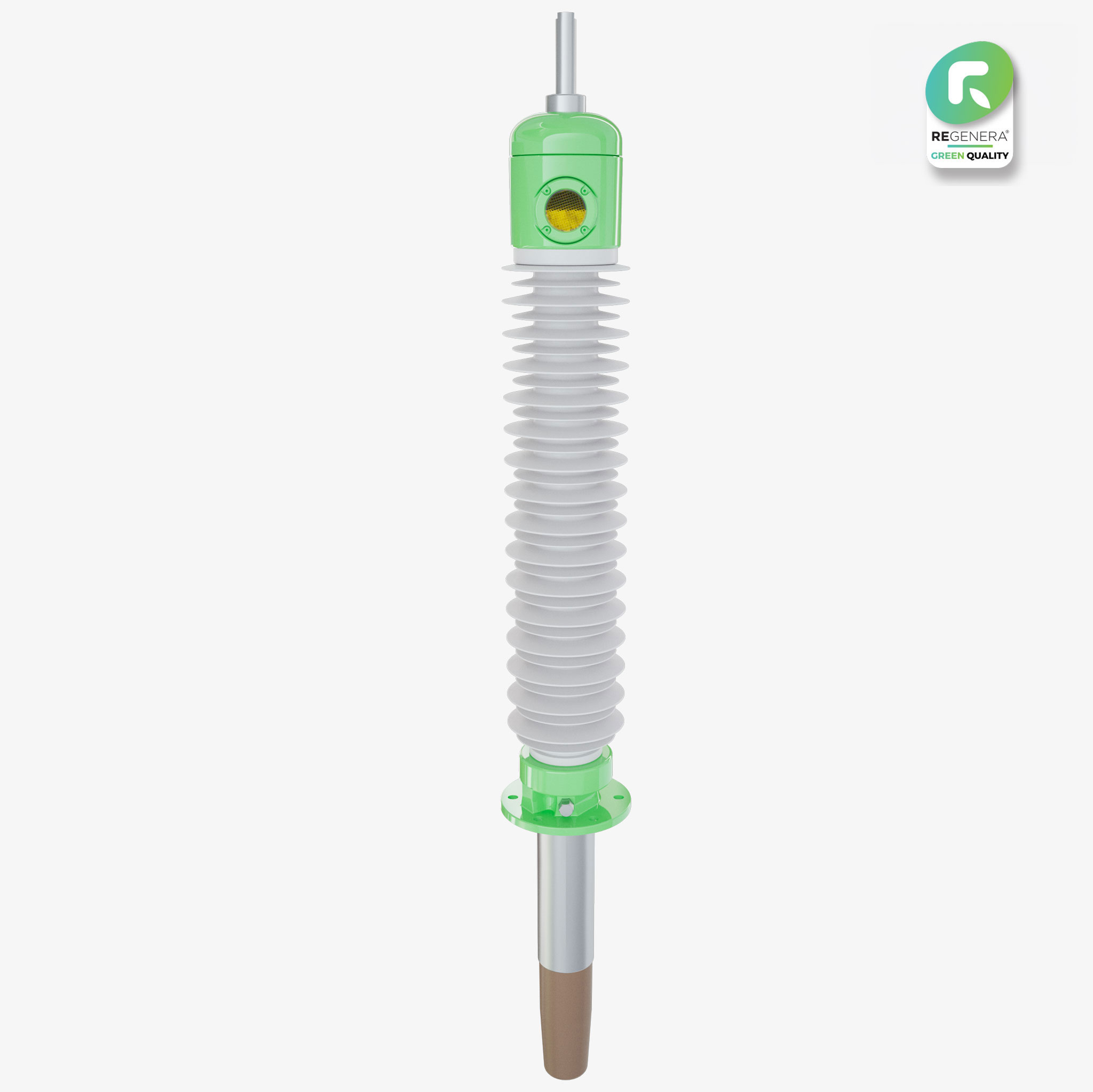

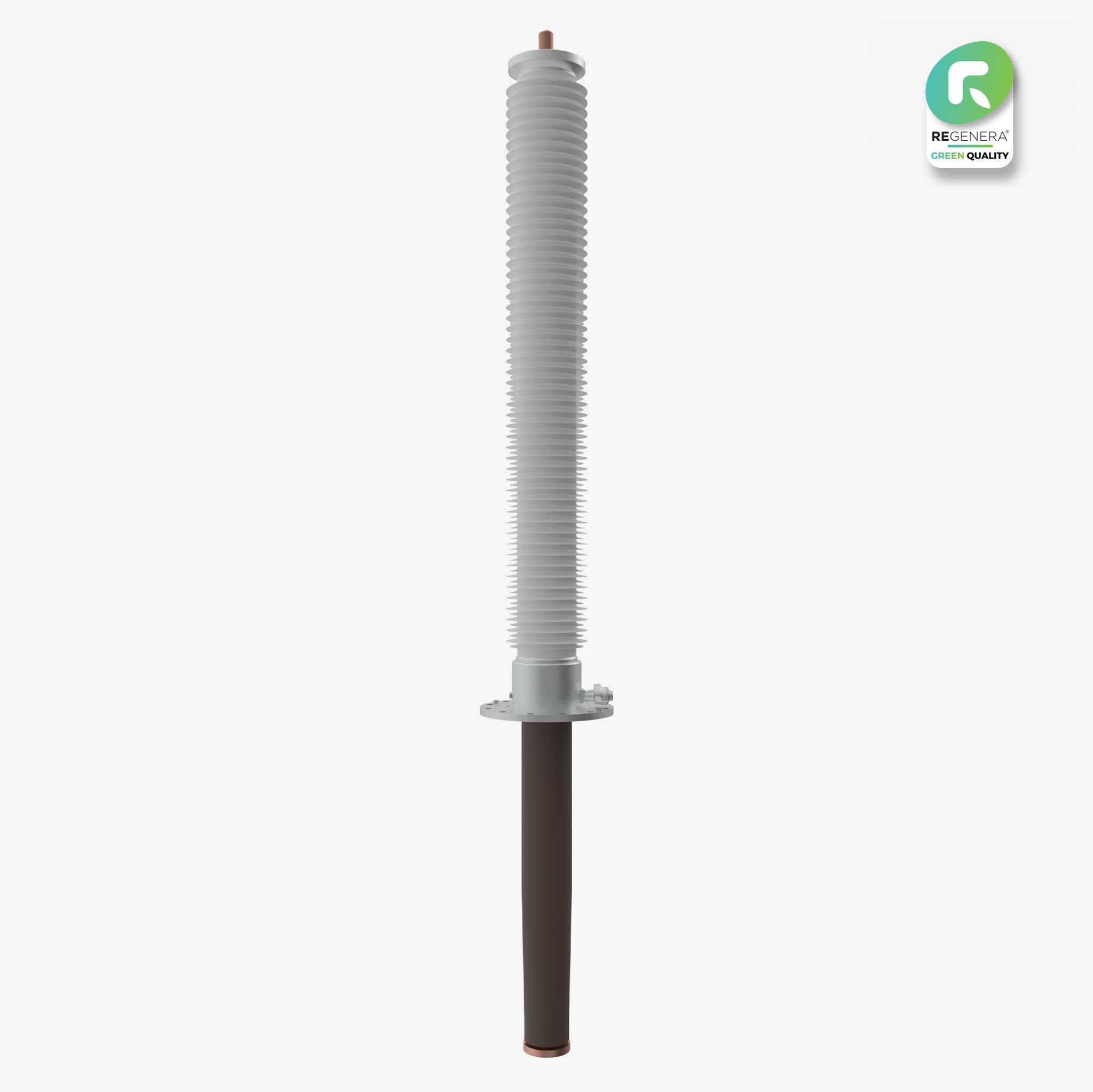

RIP RESIN IMPREGNATED PAPER TRANSFORMER BUSHING
Redefining strong and reliable connection
Redefining strong
and reliable connection
RIP RESIN IMPREGNATED PAPER TRANSFORMER BUSHING
Up to 1200 kV / 6000 A
CHARACTERISTICS
- For applications outdoors (fluid-to-air)
- Graded condenser cores
- Fully type tested according to applicable International Standards IEEE or IEC
GENERAL
- RIP bushing cores are manufactured using premium crepe paper and thin aluminum foil electrodes
- All cores are condenser type finely graded rolled on special winding machines and pre-dried under vacuum before resin impregnation
- Bushing designs are optimized for size and material usage
- Condenser cores are fully dried and vacuum-impregnated using enhanced processes to minimize CO2 emissions
- Modular bushing designs allow the use of a reduced number of components and allow entirely customizable dimensions
SUSTAINABILITY
Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.
MAIN FEATURES
Easy customization
High Voltage Bushings meet all international standards e.g. IEC IEEE etc. as well as specific customer requirements and are designed for easy installation.
Proven design
More than fifty thousand High Voltage Bushings are installed and in service for more than 60 years in all environmental conditions all around the world.
Environmentally friendly
Trench and HSP RIP bushings are designed and manufactured without any fluids such as mineral oil silicone oil or equivalent nor gases such as SF6 or nitrogen.
Tailored designs
For replacements and service applications Trench and HSP are able and capable to offer 1:1 designs to fit in all kinds of existing power transformers or oil immersed reactors.
applications
RIP RESIN IMPREGNATED PAPER TRANSFORMER BUSHING
Bushing installed on the transformer
