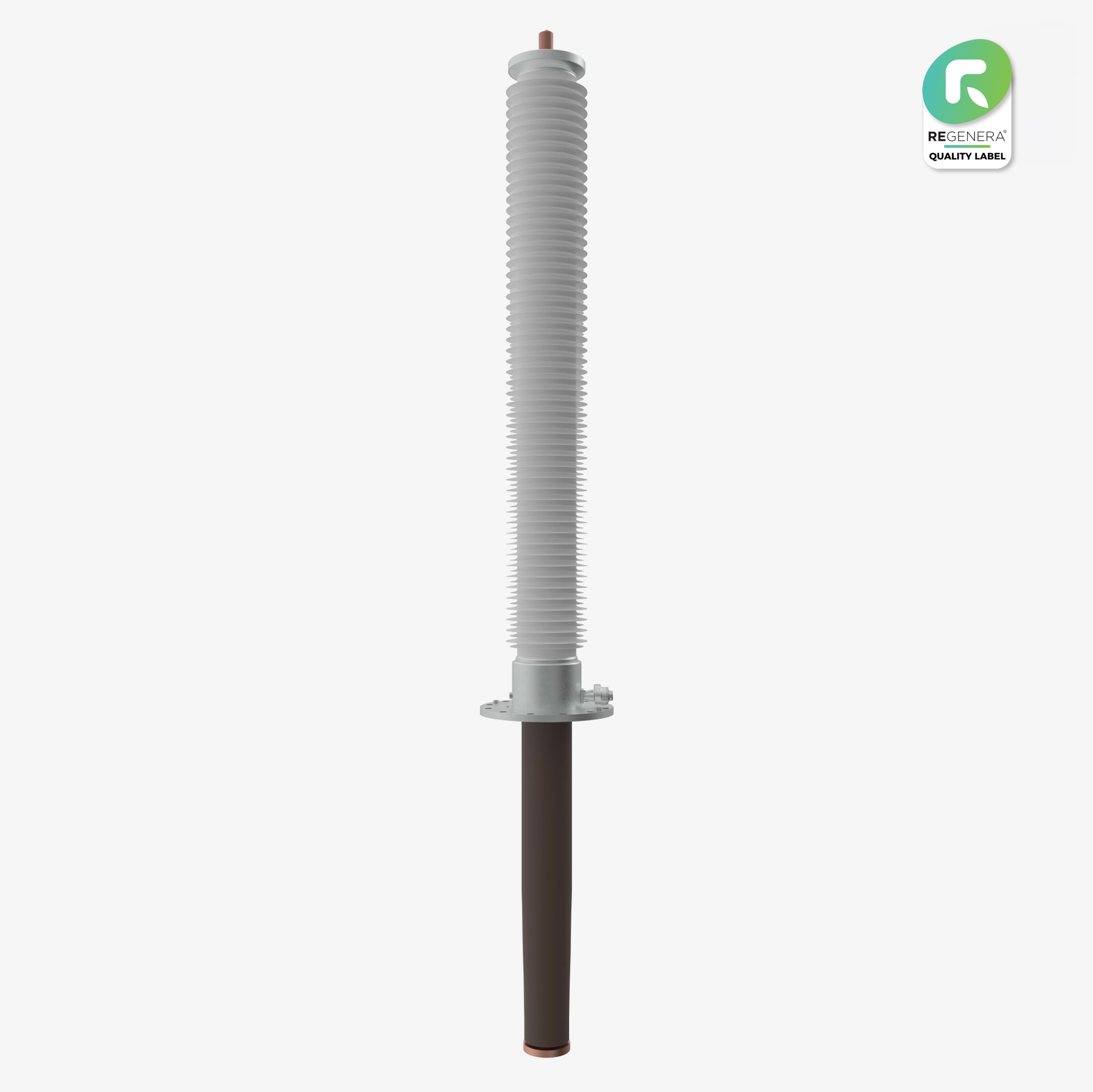

RIG HIGH CURRENT TRANSFORMER BUSHING
Redefining strong and reliable connection
Redefining strong
and reliable connection
RIG HIGH CURRENT TRANSFORMER BUSHING
Up to 52 kV / 31.500 A
CHARACTERISTICS
- Applicable for voltage levels up to 52 kV
- Designed for rated currents up to 31.500 A
- Mounting: horizontal or vertical
GENERAL
- The RIG bushing cores are made from a combination of glass fiber and thin aluminum foil electrodes
- All RIG cores for HC bushings are vacuum-impregnated condenser-type
- The modular bushing design allows the use of a reduced number of components and enables fully customizable dimensions
SUSTAINABILITY

MAIN FEATURES
Redefining strong and reliable connection
Application
Designed for liquid-to-air applications in GSU transformers.
Environmental conditions
Made for free-air or enclosed inside isophase system enclosures.
Insulation
Fiberglass-based insulation technology condenser type cores.
Thermal
155°C thermal class insulation. Suitable for 70°C ambient temperature inside enclosed ducts.
Type tested
Fully type-tested to applicable IEEE or IEC international standards.
Service and Sustainability
We ensure the safe operation of our products offering testing and refurbishment. As part of our commitment to a sustainable circular economy we provide recycling at EOL.
applications
RIG High Current Transformer Bushing
Main components of the RIG High Current GSU Transformer Bushing
RIG High Current Transformer Bushings provide a reliable and safe connection of HV power to the transformer with our proven Trench design.
