ECO FLUID INDUCTIVE VOLTAGE TRANSFORMER
A green essence flowing into our innovative technology
A green essence flowing into
our innovative technology

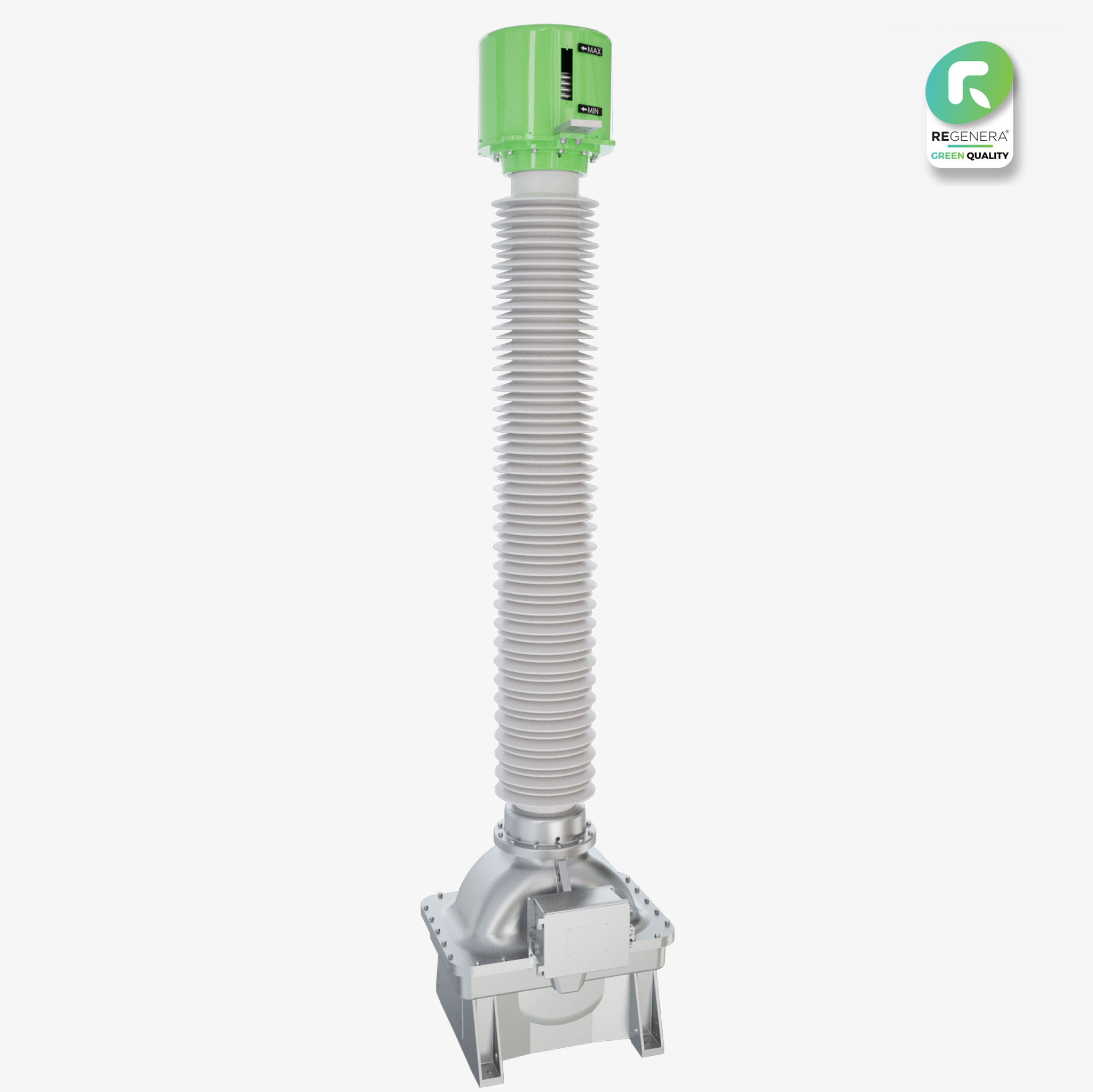

ECO FLUID INDUCTIVE VOLTAGE TRANSFORMER
550 kV
Inductive Voltage Transformers utilizing eco-friendly insulation fluid provide accurate and reliable voltage transformation, measurement, merging proven safety with eco-friendliness.
CHARACTERISTICS
- For Voltage levels up to 550 kV
- Fully type-tested according to International Standards
- Paper – Eco Fluid internal insulation
GENERAL
- Replacement for equivalent mineral conventional fluid-filled products – thanks to the same dimensions
- Water protection areas
- Underground substations
SUSTAINABILITY
- Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy
MAIN FEATURES
Eco Fluid Inductive Voltage Transformers ensure accurate and reliable voltage transformation – eco-friendly, proven, and safe.
Environmental
The use of Eco Fluid as an insulator reduces the risk of environmental damage. The fluid is biodegradable according to OECD 301, improving the environmental balance throughout the product life cycle.
Proven design
Trench Eco Fluid instrument Transformers are based on our conventional and proven insulation, well known worldwide since long time.
Improved operational safety
The higher flashpoint of the Eco Fluid increases the fire safety of the transformer.
High Voltage Insulation
The high-Voltage insulation is made by the use of high quality paper and an Eco Fluid. Fine graded bushings ensure that the electric field is optimised inside and outside the Transformer.
Hermetically sealed
In all operating conditions, a stainless steel bellow allows the liquid volume to change and the internal pressure to remain the same as the ambient pressure.
Modular design
Modular design eliminates the need for a wide range of components.
PRODUCT APPLICATIONS
Trench ECO FLUID
VOLTAGE TRANSFORMERS
FAMILY
Designs of
Eco Fluid Voltage Transformers
Trench's Eco Fluid Insulated Instrument Transformers reduce the risk of environmental damage, thanks to an insulation fluid classified as “readily biodegradable” according to OECD 301.
