CLEAN AIR GIS CURRENT TRANSFORMER

A breath of innovation
for a greener world

A breath of innovation
for a greener world

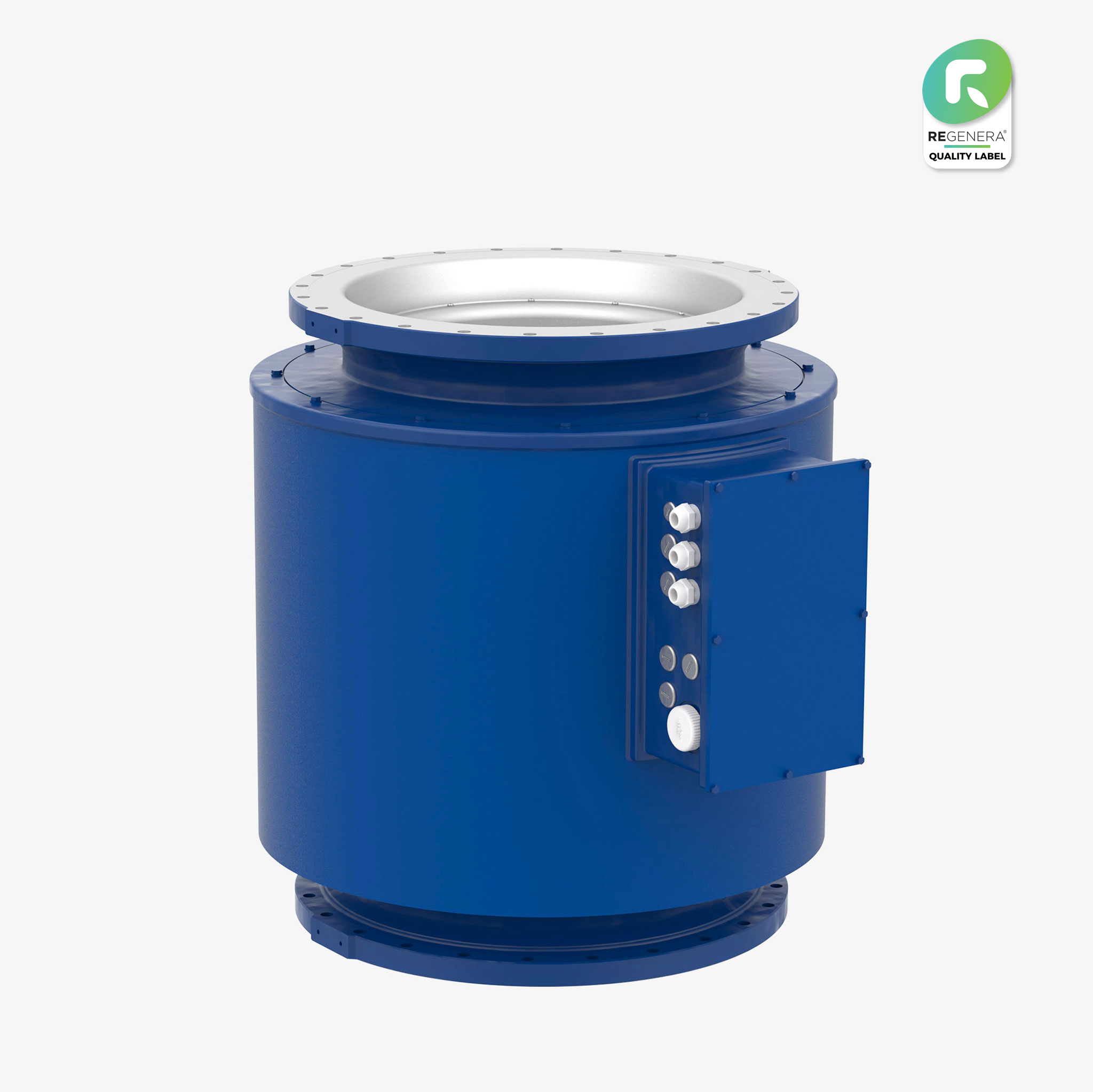

CLEAN AIR GIS CURRENT TRANSFORMER

420 kV / 6000 A

GIS Current Transformers utilizing Clean Air provide accurate and reliable current transformation, measurement, merging proven safety with eco-friendliness.

CHARACTERISTICS

  • Clean air as insulation medium
  • For voltage levels up to 420 kVFor primary currents up to 6000 A
  • Fully type-tested according to international standards

GENERAL

  • Partial discharge-free design and production process
  • Maintenance-free during a long lifetime of more than 30 years

SUSTAINABILITY

Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.

MAIN FEATURES

A breath of innovation for a greener future

Design

The explosion-proof construction is based on the combination of a compressible insulating medium and a rupture disc which is considered for current transformers in GIS switchgear design.

Mechanical characteristics

Variable due to freely selectable installation position and an excellent seismic behavior – depending on the GIS structure.

Short circuit

Short symmetrically arranged primary conductors with a low reactance enable higher short-circuit currents and prevent a large voltage drop across the primary winding.

Accuracy

Evenly distributed secondary cores ensure precise at both: rated and high currents.

PRODUCT APPLICATIONS

Trench
Clean Air GIS Current Transformer

Main components of
the Clean Air Current transformer for GIS

Flexibility and reliable precision over the entire service life of our Clean Air Insulated Current Transformers for GIS guarantee high dielectric strength safety and performance – always in line with individual customer requirements.
