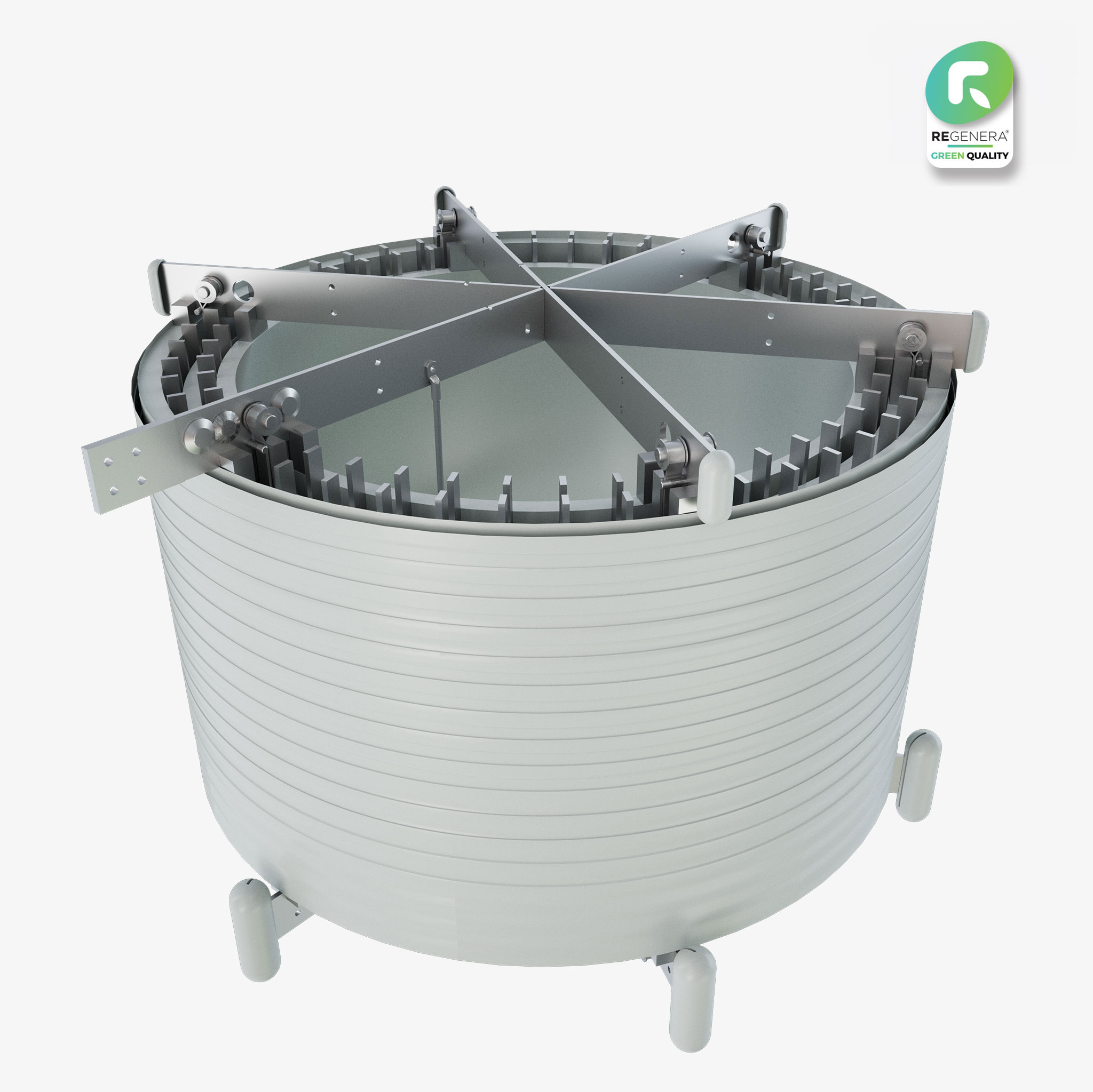

AIR CORE SHUNT REACTORS

Unleashing a new level of safety and reliability

Unleashing a new level
of safety and reliability

AIR CORE SHUNT REACTORS

Up to 550 kV / 250 Mvar

CHARACTERISTICS

  • Environment-friendly (No fire hazards in the absence of Oil)
  • Weatherproof construction with minimum maintenance requirements
  • Low noise levels are maintained throughout the lifespan
  • Designs available in compliance with ANSI/IEEE IEC and other major standards
  • Highest mechanical strength

APPLICATION AREAS

  • High Voltage Shunt Reactors (HVSR)
  • Compensation of capacitive reactive power due to longer lightly loaded lines and underground cables
  • Connected to the tertiary of the transformer to the bus or to the line directly

SUSTAINABILITY

Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.

MAIN FEATURES

Unleashing a new level of safety and reliability

Environment Friendly Dry Type Reactors

Oil free design, no risk of fire and no need for a fire protection or suppression system are other benefits. Also there is no need for auxiliary systems and bushings.

Modular design

Air Core Shunt Reactors can be designed and constructed in two columns connected in series. This significantly reduces the time, cost, and effort required for transport and installation.

Affordable Spares

Modular design provides the operator with significantly improved logistics, faster re-energization times and significantly reduced replacement costs compared to oil-immersed reactors.

Reduced Civil Work

Some of the benefits are: reduced foundation design and construction, no oil pit or collection system and firewalls between units needed, reduced weight and a more simple protection scheme.

Shorter Delivery time

Shorter lead times compared to oil immersed shunt reactors.
