RIP RESIN IMPREGNATED PAPER GIS BUSHING
Redefining strong and reliable connection
Redefining strong
and reliable connection

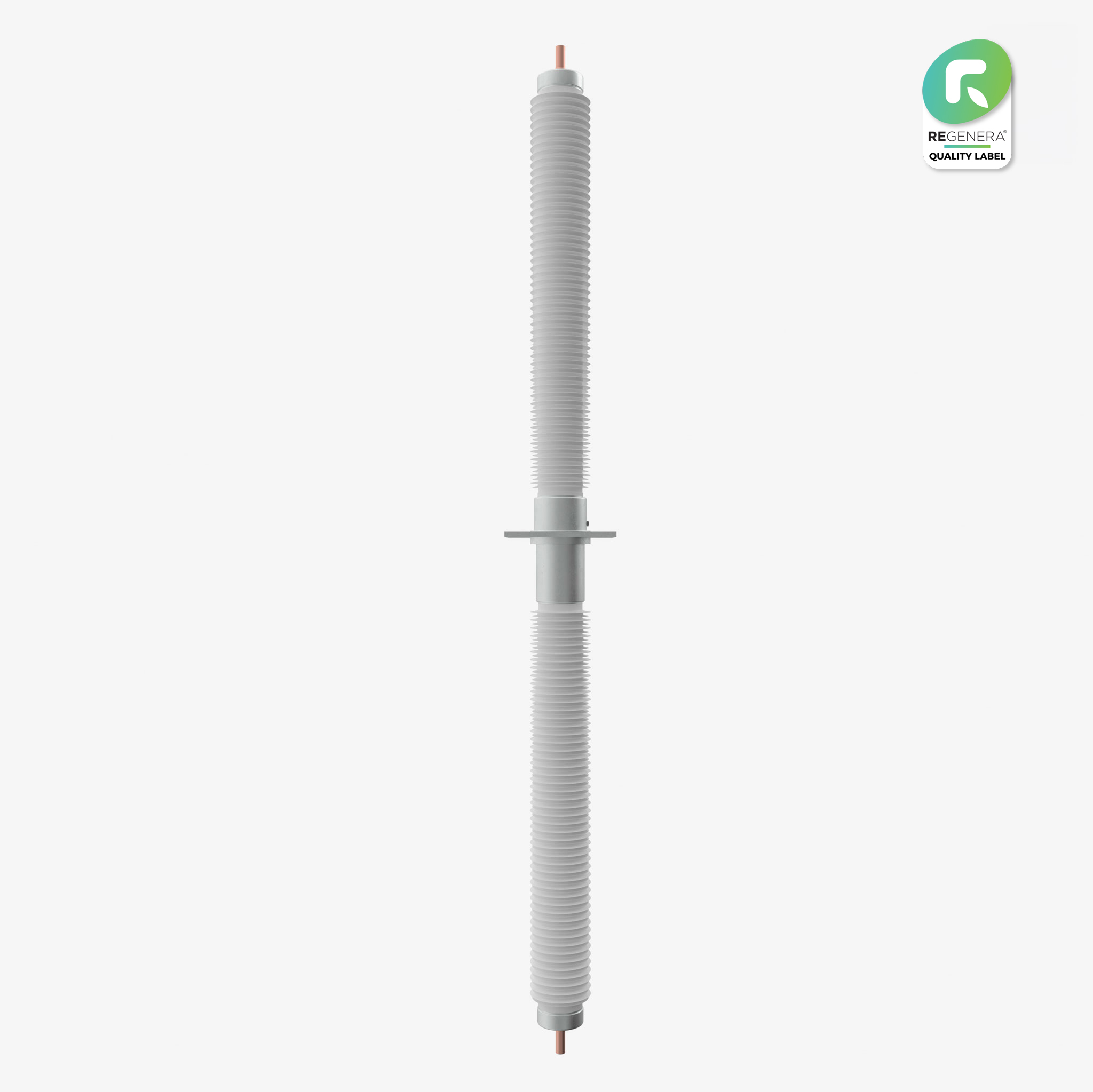

RIP RESIN IMPREGNATED PAPER GIS BUSHING
550 kV / 4000 A
CHARACTERISTICS
- Applicable for voltage levels up to 550 kV
- For GIS-to-air applications such as gas-insulated switchgear to air-insulated switchgear
- Dry-type cast resin construction
- Oil-free gas-free construction
- Fine-graded condenser cores
- Fully type tested according to applicable International Standards IEEE or IEC and customer requirements
GENERAL
- RIP bushing cores are manufactured from high-quality crepe paper and thin aluminum foil electrodes
- Condenser-type finely graded wound in special winding machines
- Oil-free gas-free dry-type construction allows installation at a variety of mounting angles
- Bushing designs are optimized for size material usage and internal free-oil volume
- Condenser cores are fully dried and vacuum-impregnated using enhanced processes to minimize CO2 emissions
- Modular bushing designs allow the use of a reduced number of components and allow entirely customizable dimensions
SUSTAINABILITY
Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.
MAIN FEATURES
Redefining strong and reliable connection
Easy customization
High Voltage Bushings meet all international standards e.g. IEC, IEEE etc. as well as specific customer requirements and are designed for easy installation.
Proven Design
More than fifty thousand High Voltage Bushings are installed and in service for more than 60 years in all environmental conditions all around the world.
Environmentally friendly
RIP bushings are designed and manufactured without any fluids such as mineral oil, silicone oil or equivalent nor gases such as SF6 or nitrogen.
Exceptional Safe and Robust Design
RIP bushings are designed for minimum 30 years of operational life with overload capabilities.
applications
RIP GIS BUSHING
Example of installation
