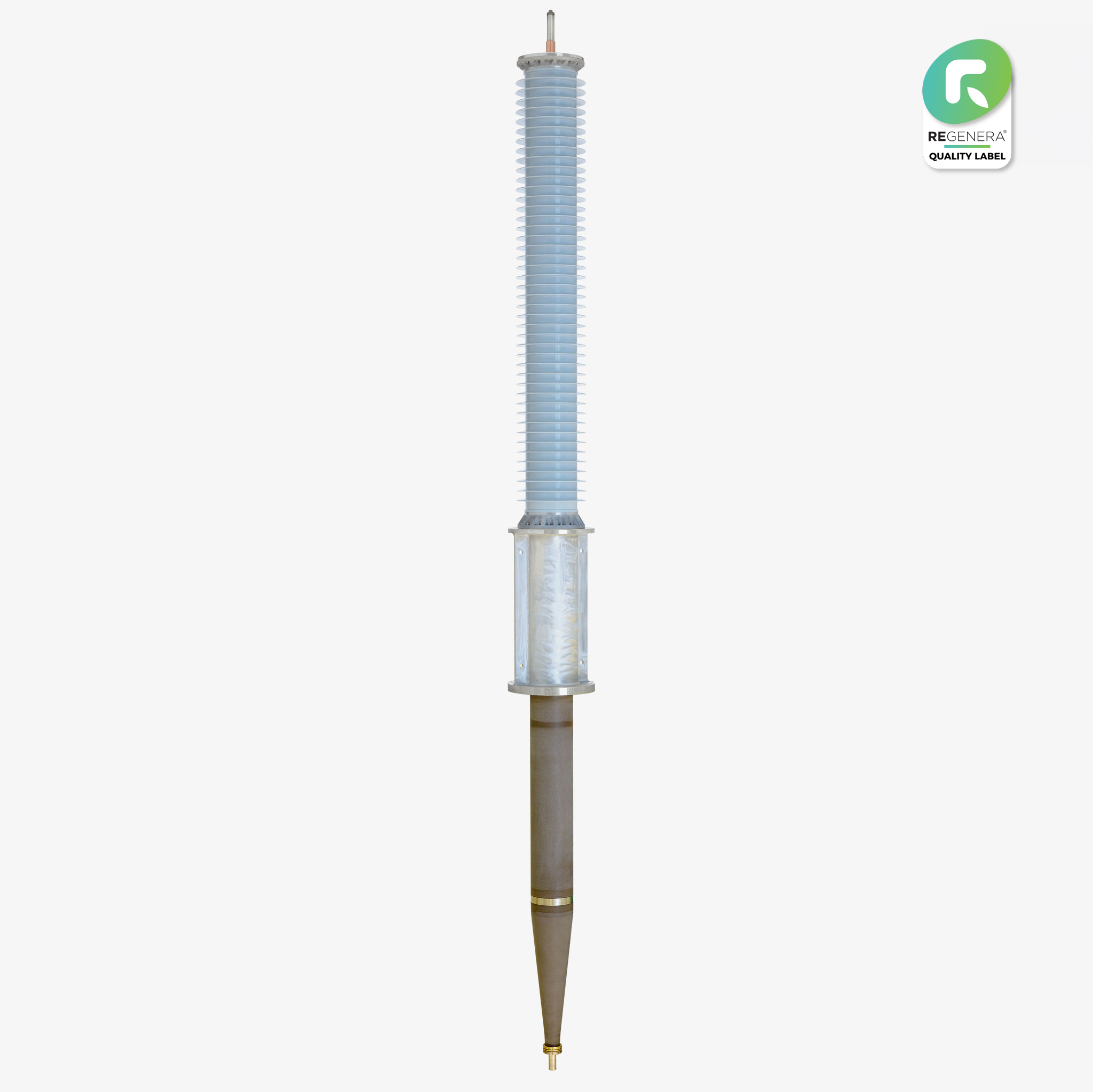

Transformer Bushing for HVDC

TRANSFORMER BUSHING FOR HVDC

Redefining strong and reliable connection

Redefining strong
and reliable connection

TRANSFORMER BUSHING FOR HVDC

Up to 1200 kV

Transformer bushing for HVDC utilizing resin impregnated paper insulation provide a reliable and safe connection of HV power to the Transformer with our proven design and highest reliability.

CHARACTERISTICS

For applications in HVDC converter systems
Graded condenser cores and superior DC grading
Fully type tested according to applicable international Standards IEEE or IEC and customer requirements

GENERAL

RIP bushing cores are manufactured from high-quality crepe paper and thin aluminum foil electrodes
All cores are condenser type finely graded rolled on special winding machines and pre-dried under vacuum before resin impregnation
The bushing designs are optimized for size and material usage
Condenser cores are fully dried and vacuum-impregnated using enhanced processes to minimize CO2 emissions
Modular bushing designs allow the use of a reduced number of components and allow entirely customizable dimensions

SUSTAINABILITY

Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.

MAIN FEATURES

Expanded range

HVDC bushings are available up to 1200 kV DC and 6000 A complying to all standards world wide.

References world wide

We have references all over the world in any specific climate zone up to 4500 m above sea level.

Proven operating reliability

Since decades HVDC bushings are in full service operation with an extremely high availability and safety.

Exceptional Safe and Robust Design

HVDC bushings are designed for minimum 30 years of operational life with overload capabilities.
