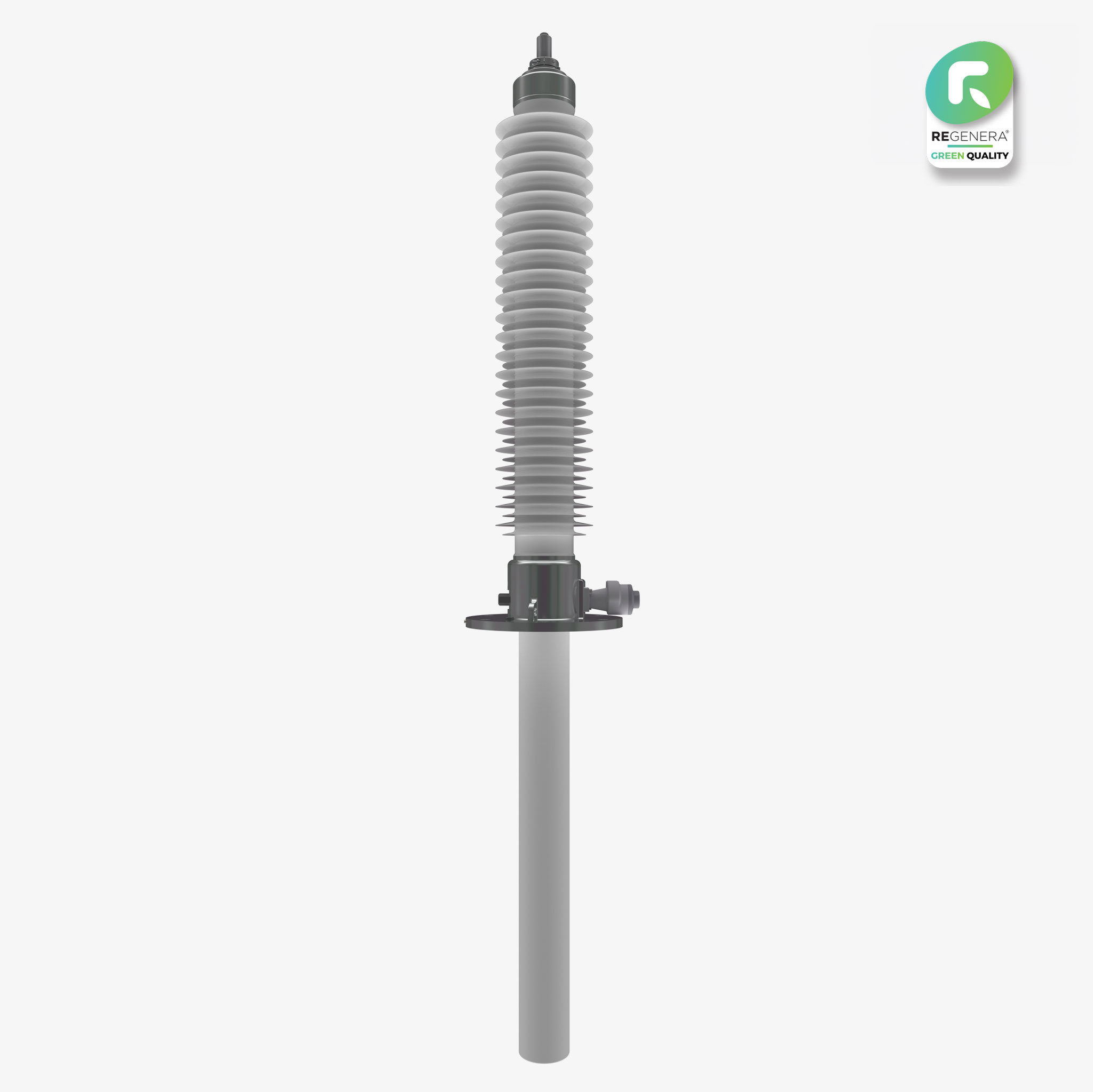

RIP RESIN IMPREGNATED PAPER WALL BUSHINGS

Redefining strong and reliable connection

Redefining strong
and reliable connection

(RIP) RESIN IMPREGNATED PAPER WALL BUSHINGS

800 kV

CHARACTERISTICS

  • For air-to-air applications such as building walls.
  • Outdoor/outdoor, indoor/indoor or outdoor/indoor installation options
  • Fine-graded condenser cores
  • Fully type tested according to applicable International Standards IEEE or IEC

GENERAL

  • RIP bushing cores are manufactured from high-quality crepe paper and thin aluminum foil electrodes
  • All cores are condenser type finely graded rolled on special winding machines and pre-dried under vacuum before resin impregnation
  • The oil-free dry design allows installation at a variety of mounting angles.
  • Bushing designs are optimized for size material usage and internal free oil volume.
  • Condenser cores are fully dried and vacuum-impregnated using enhanced processes to minimize CO2 emissions
  • Modular bushing designs allow the use of a reduced number of components and allow entirely customizable dimensions

SUSTAINABILITY

Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.

MAIN FEATURES

Easy customization

High Voltage Bushings meet all international standards e.g. IEC, IEEE etc. as well as specific customer requirements and are designed for easy installation.

Proven Design

More than fifty thousand High Voltage Bushings are installed and in service for more than 60 years in all environmental conditions all around the world.

Environmentally friendly

RIP bushings are designed and manufactured without any fluids such as mineral oil, silicone oil or equivalent nor gases such as SF6 or nitrogen.

Exceptional Safe and Robust Design

RIP bushings are designed for minimum 30 years of operational life with overload capabilities.

applications

RIP WALL BUSHINGS

Under testing
