CONVENTIONAL FLUID STATION SERVICE VOLTAGE TRANSFORMER

Resilience and reliability, even in extreme operating conditions

Resilience and reliability,
even in extreme operating conditions

CONVENTIONAL FLUID STATION SERVICE VOLTAGE TRANSFORMER

170 kV

Station Service Voltage Transformers utilizing Conventional Fluid insulation provide low-voltage power directly from HV potential in substations, with the proven Trench design and highest reliability.

CHARACTERISTICS

  • For voltage levels up to 170 kV
  • Single phase units with power outputs <10 kVA up to 100 kVA
  • Complies with the specific requirements of the SSVT standard (dual IEC and IEEE logos)

GENERAL

  • Designed and manufactured without partial discharge
  • Scalable design with 3 units in 3-phase systems or additional units connected in parallel
  • No maintenance for a long life of over 30 years

MAIN FEATURES

Resilience and reliability,
even in extreme operating conditions

Design

A safe and reliable design based on Trench's inductive voltage transformers with conventional liquid insulation. The original design of the VTs has proven itself in practice for over six decades.

Seismic

Exceptional seismic performance as a consequence of the optimized design of the insulator.

High Voltage Insulation

The optimum field grading is achieved by a fine condenser grading system that has been designed specifically for this particular application.

Low voltage Power supply

Optimized high-voltage coil for power output and specially designed low-voltage winding for power output. This allows a correspondingly large cross-section to be connected to the secondary outputs.

Modular design

Allows the use of a reduced number of components.

PRODUCT APPLICATIONS

Trench

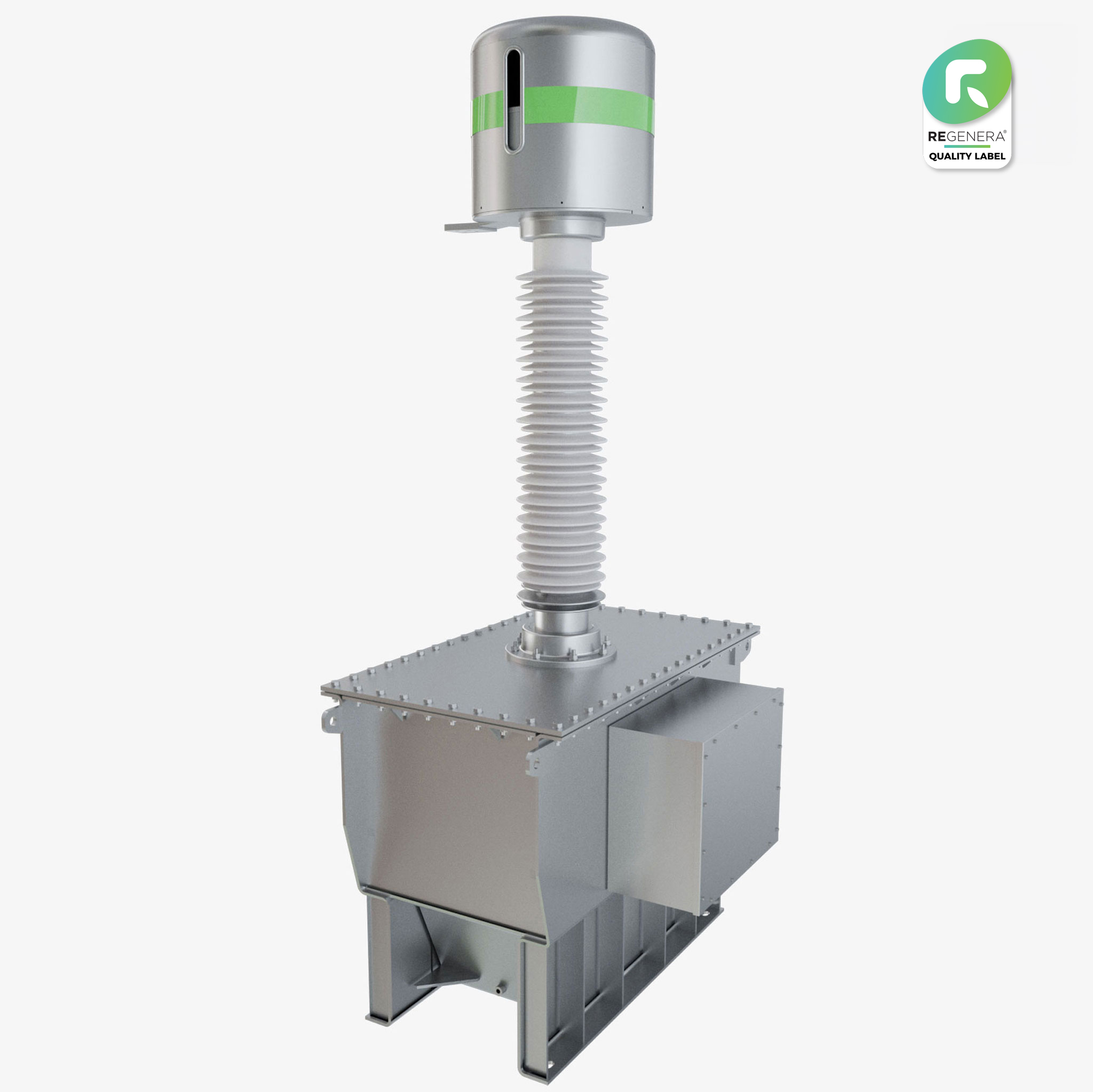

CONVENTIONAL FLUID STATION
SERVICE VOLTAGE TRANSFORMER

Main components of
the Conventional Fluid Station Service Voltage Transformer

Based on a design that has proven over decades, Trench's Conventional Fluid Station Service Voltage Transformer provides the perfect combination of an inductive voltage transformer and a small power transformer.

Proven design
Conventional Fluid Insulated Power Voltage Transformers, represent a proven design approved globally. Over a thousand SSVTs – with and without Conventional Fluid insulation – have been installed worldwide in all environmental conditions to the complete satisfaction of our customers.
Power supply for remote areas
Low voltage power supply derived directly from high voltage to supply energy to remote locations and equipment.
Auxiliary power supply for substation
Low voltage power supply derived directly from high voltage to power equipment in the GIS substation.
