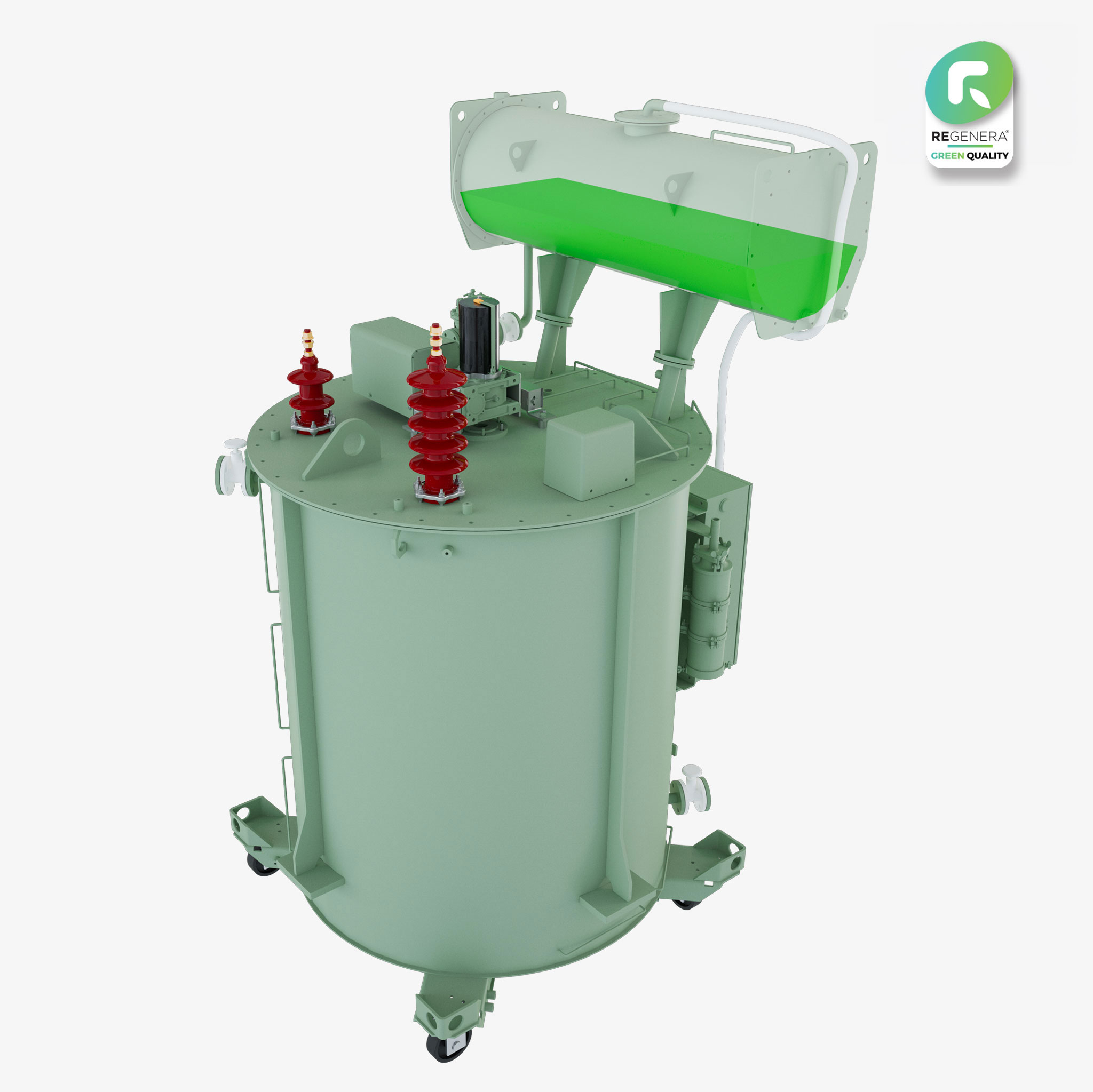

ECO FLUID ARC SUPPRESSION COILS
A green essence flowing into our innovative technology
A green essence flowing
into our innovative technology
ECO FLUID ARC SUPPRESSION COILS
Available for voltage level up to 36Kv, 15 MVAr
CHARACTERISTICS
- Fully meeting lEC 60076-6
- Available in continuous and Short time duty version
- Continuously variable [in on-load condition] by means of variation of the air gap
APPLICATION AREAS
- Networks for power distribution
- Compensated (resonant earthed) electrical systems
- Connected between the neutral of the system and the earth
SUSTAINABILITY
Regenera™ is our holistic approach to protecting ecosystems, fostering environmental harmony and promoting a circular economy.
MAIN FEATURES
A green essence flowing into our innovative technology
Reliable Power Supply
Ester Arc Suppression Coils provide continuous power supply in the event of an earth fault by means of continuous current regulation, for accurate tuning and minimizing residual current.
Sustainable Product
Ester Arc Suppression Coils are environment friendly with degradable insulating fluid, resulting in a much smaller carbon footprint with the same safety and reliability.
Improved operational safety
Ester fluid comes with higher flash point, reducing the risk of fire and increases the protection of equipment and safety of human.
Compact Construction
Optimized design by leveraging experience and standardizing products for each market.
Modular design
Offers flexibility in component selection to meet customer requirements or specific product design needs. Stepless adjustable design with a range of 10-100% of rated current by fine adjustment of the plunger core using a motor drive unit.
Control
Manual control or automatic adaptation to the current network status using a Trench Austria earth fault compensation controller.
Special design
A Trench Ester Arc Suppression Coil with a built-in earthing transformer, the “Neutral Earthing Aggregate”.
applications
Sustainable References
For a greener world, without functional compromises
Trench is taking responsibility by producing environmentally friendly Eco Fluid ASCs that mitigate the effects of single-phase earth faults. Eco Fluid ASC is a step towards achieving carbon neutrality.
